Fire Protection Hose Reels – FireDog

  • Only fire reel with Easy Deploy® auto declutching reduces strain injury
  • Flat-Wind® auto hose xxx single person operation with remote control
  • Safe-R-Reel® gearbox designed for safer rewind speeds protecting personnel and property

Description

Fire Dog Hose Reels: An ergonomic fire protection hose reel range with safety features

Total Fluid Transfer

Everyday fire fighters require safer reels to reduce injuries. Engineered and made in Australia, the Fire Dog™ hose reels are ergonomically designed to deliver intuitive operation and improve safety. Volunteer and professional fire fighters can quickly and efficiently get on with their task of saving lives and community while minimising handling injuries.

Reel Tech, a sister company of Spray Nozzle Engineering, with technology that has served Australian and international fire protection services in all industries for over 30 years, creating cost-effective, compact, customised, and safety-compliant hose and cable reel solutions. Their range includes Australian designed and manufactured FireDog™ fire protection reels and Hannay tried and trusted Fire and Rescue reel series and their own world patented.

Safe direct-drive technology and Flat Wind level wind system

The FireDog™ is a new innovation in direct-drive safety hose reels, designed for reduced risk of injury and fatigue during operation. The hose reel features an integrated mechanical clutch that minimises hose drag, free wheel mode for easy payout, emergency override mode for manual crank, and Unique Action Brake Pat. Pend. manual braking mechanism. It comes in ultra-narrow to ultra-wide widths to fit different space requirements and optional lightweight aluminium construction.

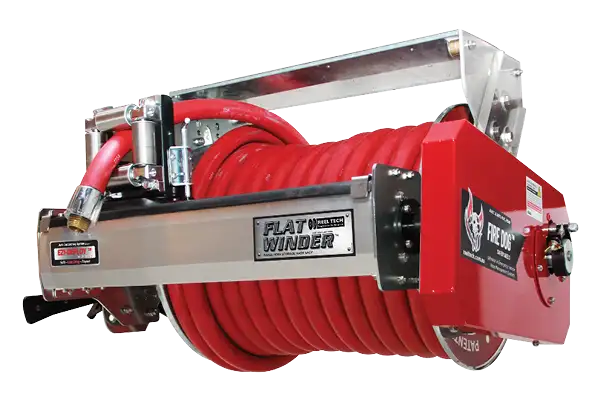

Reel Tech engineering team has also patented the Flat Winder™ level-wind system, a world first in hose and cable layering, allowing perfect single user operation and hose storage, without the need to touch or guide heavy hoses during rewind. When optioned with Reel Tech remote control rewind system, with long range and channel signal technology, single person operation is now safe, reliable and cost effective. This advanced technology aids easy payout, requires less personnel for hose storage duties, and delivers more reliable and consistent layering. Flat Winder™ is the ideal choice to combine with the robustness of a FireDog™ or Hannay Fire and Rescue reel for the perfect hose reel system solution.

Equipped with a quick change hub, heavy-duty modular form, low cost motor, safer rewind speed and optional remote control operation, the unequalled FireDog™ is at the forefront of fire-fighting hose reel technology. Where quick response times are critical, FireDog™ is your best friend.

Heavy duty and modular

Its heavy duty, modular construction can be used on all indoor, underground, outdoor and mobile applications. The Fire Dog™ can be Shipped Complete or in Knock-Down Form for easy assembly, which saves on freight.

Low cost motor drive

Choose a low cost motor drive to suit you. Our low cost motor utilises the torque advantages and safer rewind speed of the standard gearbox include air, hydraulic, electric 12/24VDC and manual crank.

Quick hub size change

Change hub sizes in minutes. A stainless steel swivel can be easily added upon request making the entire fluid path stainless steel to suit aggressive or corrosive fluids.

Sizes to suit all works

The Fire DogTM Reel Direct Drive series is now available in the widest range of hose capacity to suit various capacity and space requirements. The new expanded range is now available to suit most common hose sizes from 1/2” to 2” I.D. New Ultra-Narrow design is now available for smaller capacity or limited space requirements such as in workshops, service trucks and mine processes.

Also available is the Ultra-Wide design. The Ultra-Wide Design is the widest Direct Drive ‘Safety Reel’ on the market.

Fire Dog features - hose reel for fire protection

Technical Info

  • EZI-DEPLOY™ – “Drag-free” Auto Declutching System [Optional]
  • Safe-R-Reel™ – Speed Control Gearbox [Optional]
  • Flexible in size and capacity
  • OH&S friendly
  • Available in Aluminium and Steel construction
  • Powder coated or hot dip galvanised finish [Optional]
  • Flat Winder™ – Automatic hose layering technology [Optional]
  • Reel-In-Control™ – Wireless remote control rewind [Optional]
  • Free Wheel Mode – Bypass electrical motor [Optional]
  • 4 way roller guide [Optional]
  • Auxiliary manual crank rewind [Optional]
  • Brakes and locks [Optional]



TYPES OF REELS:

  • Large Capacity FD-LC SERIES
    • Comes with safety features: EZI-DEPLOY™ – “Drag-free” Auto Declutching System and Safe-R-Reel™ – Speed Control Gearbox
    • Suitable for 3/4” I.D. and 1” I.D. hose sizes
    • Reel pressure to 2000psi
  • Medium Capacity FD-MC SERIES
    • Comes with safety features: EZI-DEPLOY™ – “Drag-free” Auto Declutching System and Safe-R-Reel™ – Speed Control Gearbox
    • Suitable for 1/2” I.D. and 1” I.D. hose sizes
    • Reel pressure to 2000psi
  • Small Capacity FD-SC SERIES
    • Comes with removable manual crank rewind
    • Suitable for 1/2” I.D.to 1” I.D. hose sizes
    • Reel pressure to 5000psi

USES:

  • Hazmat clean up
  • Extrications
  • Electric cables for lights and tools
  • Breathing and utility air applications
  • Hydraulic/pneumatic power tools
  • Dual agent – foam/water

Video

Downloads

Download Fire Dog Hose Reel Brochure
Download Fire Dog Hose Reel Ezi Deploy Brochure
Download 10 Facts Hose Reel Safety Brochure
Download Info Sheet Hose Reel Payout and Rewind Brochure
